By-Pass Oil Filters

A separate aftermarket oil filtration kit that removes wear particles down to one micron! The ultra-fine filtration dramatically extends oil change intervals and engine life. Increases oil capacity and improves oil cooling. Keeps engine oil clean on a constant basis. Can be fitted to most gasoline and diesel engines.

What is Oil By-Pass Filtration?

By-pass filters are an add-on oil filter kit that is far more capable than the standard oil filter on your vehicle. By-pass filters remove wear-causing particles down to less than a micron. Standard full-flow oil filters only remove particles down to 15-25 microns. The dense by-pass filter media slowly cleans the oil over about a 5 minute span, leaving oil almost as clean as it came out of the bottle. This dramatically extends oil life and removes virtually all wear-causing particles. These systems add engine oil capacity which also extends oil life and contributes to cooler oil temperatures. Optional sample valves makes sample-taking for oil analysis a breeze. Rather than change oil at a set interval, use bypass filtration and lab analysis to scientifically dictate oil change intervals. Save time and money on oil changes, lower engine wear and reduce waste oil. These systems are especially beneficial to those who log big miles. Systems available for cars, trucks and heavy duty applications. These durable systems can be transferred to future vehicles. Note that you may need to fabricate a mounting bracket for many applications. For more information or pricing on any of these kits, feel free to contact us.

By-Pass Filtration Systems Application Guide

Also See: AMSOIL Marine Dual Remote Oil By-Pass Filter System

PRODUCT DESCRIPTION

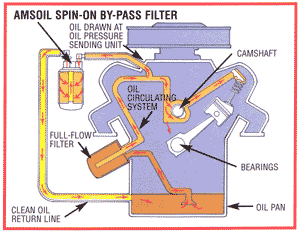

The AMSOIL By-Pass Oil Filter provides the best possible filtration protection against wear, oil degradation, rust and corrosion. Working in conjunction with the engine’s full-flow oil filter, the AMSOIL By-Pass Filter operates by filtering oil on a “partial-flow” basis. It draws approximately 10 percent of the oil pump’s capacity at any one time and traps the extremely small, wear-causing contaminants and water that full-flow filters can’t remove. The AMSOIL By-Pass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil. More info on the AMSOIL EaBP By-Pass Filter Elements

Higher Efficiency

AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.

Superior Construction

The superior construction of AMSOIL EaBP By-Pass Filter Elements provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior; and their zinc-dichromate base plates increase rust protection. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.

Longer Lasting

When used in conjunction with AMSOIL Motor Oil and an AMSOIL EaO Oil Filter or Donaldson Endurance™ Oil Filter, the EaBP should be changed every other full-flow filter change up to 60,000 miles. When used with other brands of motor oil or full-flow filters, the EaBP Filter should be changed every other full-flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals.

Increased Oil Capacity

The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased, providing extended engine life.

Soot Removal

AMSOIL has designed a high-efficiency by-pass filter element that is also a soot removal device. AMSOIL Ea By-Pass Filters use a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. These filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.

By-Pass Filtration Benefits

• Dramatically Extended Drain Intervals
• Improved Oil Cooling
• Increased Filtration Capacity and Life
• Increased Fluid System Capacity
• Efficient Small Particle and Soot Removal
• Significantly Extended Engine Life
• Equipment Constantly Runs on Clean Oil
• Increased Engine Efficiency
• Remove Particles Less Than One Micron

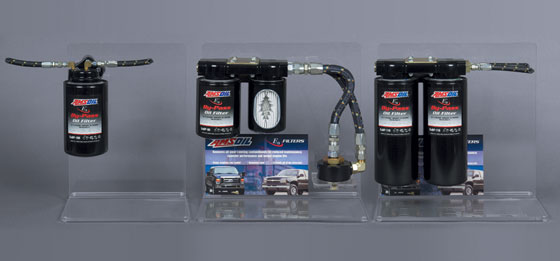

BMK-21

A single remote system ideal for tighter areas under the hood. We also offer custom installation accessories to make installation on Dodge/Cummins 5.9/6.4L, Ford Power Stroke™ 6.0L/6.4L and GM 6.6L Duramax diesels a snap. Perfect for automotive or smaller industrial/commercial applications.

BMK-22

For heavy-duty engines with sumps greater than 20 US quarts. Combines two by-pass elements for serious engine protection and extended drain intervals. Does not include hose fittings or filter elements.

BMK-23

A universal kit that combines the full-flow oil filter and a bypass element. Allows you to locate your filters for convenient service. Easy installation. Requires full-flow and by-pass element. Also requires “spin-on” adapter to match the threads on your existing full-flow oil filter.

BMK-23, 25, 26, 27

Custom dual-remote by-pass kits for Dodge/Cummins (5.9/6.4L), Ford 7.3L Power Stroke™ and GM 6.6L Duramax. Includes EaO 26 full-flow oil filter, EaBP100 by-pass element, the appropriate “spin-on” oil filter adapter, hoses, fittings and hardware.






BMK-30

For most all heavy-duty applications including Class 6, 7 and 8 heavy-duty trucks, off-road equipment, buses, generators, marine engines, logging and agricultural equipment. Requires EaBP 120 element, hose and engine adapters.The AMSOIL BMK30 is made from high-quality cast aluminum with a steel filter spud that has been thoroughly tested in on-road and severe off-road service.* Filter not included with the BMK30 kit.The EaBP120 Filter and hose (BP250) must be purchased separately.

Installation and Servicing Instructions

• BMK18 Marine By-pass System
• BMK21 Single Remote By-pass System
• BMK22 Dual-Gard Heavy Duty By-pass System
• BMK25 Dual Remote By-pass System (Dodge/Cummins Diesel 5.9, 6.7L)
• BMK26 Dual Remote By-pass System (Ford PowerStroke 6.9, 7.3 & 7.5L)
• BMK27 Dual-remote By-pass System (GM Duramax/Isuzu Diesel 6.6L)
• BMK30 Heavy-Duty By-pass System
• By-Pass Filtration Systems Application Guide

Aluminum Billet Oil Fill and Oil Filter Caps for BMK21 By-Pass Filtration System

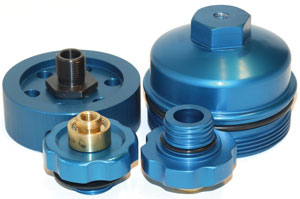

Bypass Adapters

AMSOIL offers by-pass components to ease the installation of the BMK21 By-Pass Filtration System in three popular diesel engines: the Ford 6.0L Power Stroke™, the Dodge 5.9L Cummins and the General Motors 6.6L Duramax.

Engine compartments are becoming increasingly cramped, leaving little room for after-market additions and improvements. The BMK21 is a single remote by-pass filter system that fits into much smaller spaces than the AMSOIL Dual-Remote By-Pass System.

Ford 6.0L/6.4L Power Stroke™ Diesels

To ease installation of the BMK21 on 2003 and later model Ford pickups equipped with the 6.0L and 6.4L Power Stroke™ diesel engines, AMSOIL offers the new Aluminum Billet Oil Filter Cap (BK1101), the Aluminum Billet Oil Fill Cap (BK1102) and the 90-degree JIC Elbow (BP242, two recommended) (all sold separately). These new high-quality billet aluminum caps replace the original equipment manufacturer (OEM) filter cap and oil fill cap. The new caps have holes tapped in them that accept the JIC elbows for hose connectors.

Dodge 5.9L/6.7L Cummins Diesels

To ease installation of the BMK21 in later model Dodge pickups equipped with the 5.9L and 6.7L Cummins diesel engine, AMSOIL offers the 1/8″ NPT – 1/4″ JIC fitting (BP241), the Aluminum Billet Oil Fill Cap for Dodge 5.9L Cummins diesels (BK1301), for 6.7L Cummins engines use (BK1302), and the 90-degree JIC Elbow (BP242) (all sold separately). The BP241 fits onto the existing plug on top of the OEM full-flow filter mount, and the addition of the BK1301 eases the installation of the oil return line.

General Motors 6.6L Duramax Diesels

To provide GM Duramax owners the same ease of installing the BMK21, AMSOIL is now offering an oil filter “Sandwich” adapter (BK1201).

The Sandwich adapter is an anodized billet aluminum adapter that screws on to the present full flow oil filter nipple located on the engine block. The full flow filter is then simply spun on to the adapter. The Sandwich adapter has an orifice to provide high-pressure oil feed for the BMK21. Like the other diesel applications, AMSOIL now offers an Aluminum Billet Oil Filler Cap for (BK1202) to ease the installation of the oil flow from the BMK21 back to the engine. To complete an installation, the following components must be purchased separately:

1. Aluminum oil filter Sandwich Adapter with o-ring (BK1201)
2. Aluminum Billet Oil Filler Cap for GM Duramax (BK1202)
3. Two 90 degree JIC Elbows (BP242)
4. Single Remote By-pass system (BMK21)
5. By-pass filter for EaBP90, EaBP100, or EaBP110 (as space dictates)

Dual Remote Filter System

The AMSOIL Dual Remote Oil Filtration System converts an engine’s full-flow oil filter system into a full-flow/by-pass oil filtration system by attaching an AMSOIL Full-Flow Oil Filter and AMSOIL Spin-On By-Pass Oil Filter onto a remote mount. The Dual Remote System provides superior filtration efficiency, increased oil capacity and improved oil filtration accessibility.

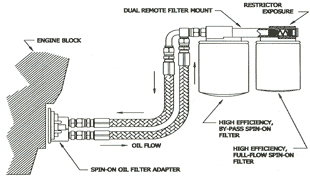

Typical Installation Diagram for BMK-23, BMK-25, BMK-26 and BMK-27 Kits.

Note: The “spin-on filter adapter” for the BMK-23 universal Dual Remote By-pass kit is sold separately and is specific to the thread and base size of your vehicle’s full flow oil filter base. See installation instructions for more details.
